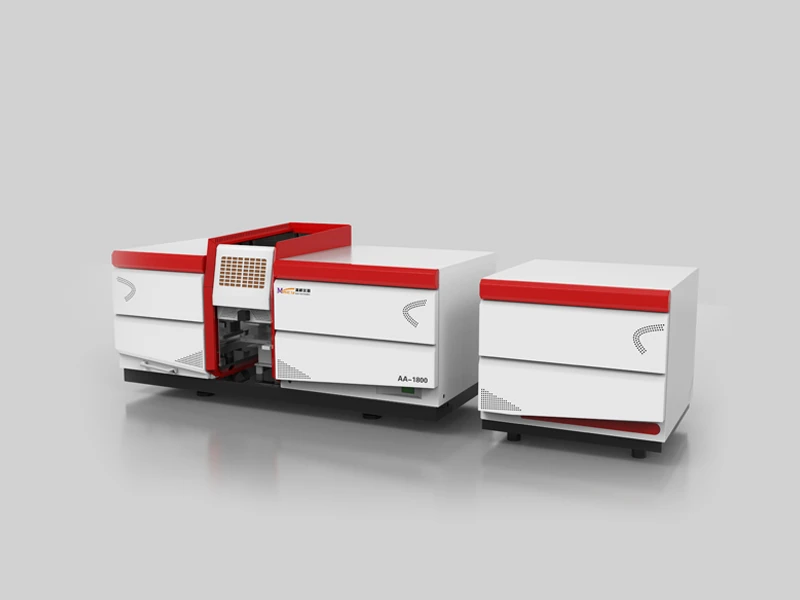

The Macylab AA-1800E is a multifunctional Atomic Absorption Spectrophotometer designed for the analysis of complex samples. Operating in the 190nm to 900nm wavelength range, it integrates a flame analytical system, a graphite furnace analytical system, and supports hydride generation into a single platform.
Built with an 1800 lines/mm large area grating monochromator and a fully closed optical system, the instrument can automatically switch between flame and graphite furnace operating modes. Through its control software, the AA-1800E supports automatic wavelength scanning, alignment, and unmanned automatic analysis for routine laboratory testing requirements.
Key Features
Flame & Graphite Furnace Auto-Switching: Controlled by the software, the instrument automatically switches between flame and graphite furnace modes, configuring the system for different concentration ranges and allowing automatic optimization.
Automatic 8-Lamp Turret: Features an automatic socket configuration that holds ≤8 independent lamp power supplies. It supports simultaneous preheating and automatic conversion to streamline multi-element workflows.
Optical Temperature Monitoring (Graphite Furnace): Utilizes a longitudinal optical temperature monitoring system that detects the graphite tube wall temperature. This enables programmable temperature control up to 3000°C.
Corrosion-Resistant Flame System: Equipped with a polymer material spray chamber that provides resistance to acids and alkalis, including hydrofluoric acid. It is paired with a titanium burner.
Precision Optical System: Employs a large 1800 lines/mm grating monochromator and an imported photomultiplier tube (PMT) detector, supporting a wavelength accuracy of ≤0.15nm and repeatability of ±0.1nm.
Automated Gas & Safety Control: The flame system automatically accomplishes safety ignition and extinction. The graphite furnace integrates specific alarm and protection functions for graphite tube damage, water flow, air pressure, and overheating.
Specifications
Parameter
Specification
Model
AA-1800E
Light Source
≤8 lamps automatic turret, independent power supply
Optical System
Large 1800 lines/mm grating, full closed optical system
≤±0.002A/30 min (Static) | ≤±0.005A/30min (Dynamic)
Absorbance Range
0 – 4A
Detector
Imported Photomultiplier Tube (PMT)
Burner Head (Flame)
Full titanium combustion head, 50mm or 100mm
Atomization Chamber
Polymer explosion-proof spray chamber
Heating Mode (Graphite)
Vertical heating
Temperature Control (Graphite)
Optical temperature monitoring (tube wall)
Temperature Range (Graphite)
Room temperature to 3000ºC
Characteristics Volume
0.5 × 10⁻¹²g (Cd)
Detection Limit (Graphite)
0.4 × 10⁻¹²g (Cd)
Graphite Furnace Safety
Alarm/protection for tube damage, water flow, air pressure, overheating
Power Supply
110/220V (+5% ~ -10%), 60/50Hz; 5000VA
Applications
The AA-1800E is utilized in scientific research, quality control, and industrial sectors for high-sensitivity trace elemental analysis:
Environmental Protection: Testing trace elements and heavy metals in environmental water, tap water, and soil samples.
Food Safety and Agriculture: Analyzing nutritional elements and heavy metal contamination in agricultural products and processed foods.
Metallurgy and Chemical Industry: Analyzing elemental compositions in ores, metallurgical materials, and chemical raw materials.
Disease Control & Scientific Research: Routine elemental analysis and quantitative detection for biological samples and public health applications.
Who is it for?
Comprehensive Testing Laboratories: Facilities that need to test both high-concentration elements (via flame) and high-sensitivity trace level elements (via graphite furnace) using a single, switchable instrument.
Quality Control Institutions: QC labs in the chemical, agricultural, and metallurgical industries that demand reliable equipment for routine quality control and analytical precision.
Research Departments: Organizations conducting elemental analysis on complex sample matrices that benefit from programmable graphite furnace temperature controls and automated sample handling.
Why choose it?
Integrated Flexibility: By incorporating both flame and graphite furnace systems, the AA-1800E allows laboratories to adapt to varying sample concentrations automatically via the software, providing a flexible configuration program for different analytical demands.
Structural Stability: The optical path system is secured on a solid base. This structural design resists thermal deformation and helps maintain optical alignment during transportation and long-term high-temperature operation.
Certified Qualifications: The instrument complies with major product qualifications and safety standards, holding certifications including the European CE mark, North American ETL, FCC, RoHS, China CQC, and 3C.
Packaging, Installation & Operation
Packaging & Shipping
After unpacking the instrument, compare the contents with the packing list and check that all items are present and undamaged.
Installation & Setup
Place the spectrophotometer in a suitable location away from direct sunlight, dust, corrosive gases, and strong vibrations. For stable operation, keep it away from strong magnetic or electrical fields and electrical devices that may generate high-frequency fields.
Keep the area around and underneath the instrument clear to allow adequate airflow.
Use the appropriate power cord and connect the instrument to a grounded outlet.
Initial Operation
Turn on the spectrophotometer and allow it to warm up for the recommended time before taking measurements. Follow the instrument’s operating instructions to complete any required system initialization, calibration, or wavelength verification before measurement.
Exhibition
FAQ (Frequently Asked Questions)
No. The Burner Deflection Technology (used for manually rotating the burner to reduce absorbance in high-concentration samples) is specifically equipped only on our Flame-only models (AA-1800F, AA-1800C, AA-1800D). The AA-1800E utilizes a titanium burner designed to work seamlessly with the automated flame/graphite switching system.
Yes. Supported by the control software, the flame and graphite furnace operating modes can be switched automatically without requiring manual hardware realignment, supporting unmanned automatic analysis.
The AA-1800E features an automatic socket configuration that can hold ≤8 lamps. Each has an independent power supply, allowing them to be preheated respectively to save time during multi-element testing.
The AA-1800E uses a longitudinal optical temperature monitoring system to directly detect the graphite tube wall temperature, allowing for programmable temperature control up to 3000°C.
The flame system features automatic safety ignition and extinction. The graphite furnace system is equipped with specific alarms and protection mechanisms for graphite tube damage, insufficient water flow, abnormal air pressure, and overheating.
