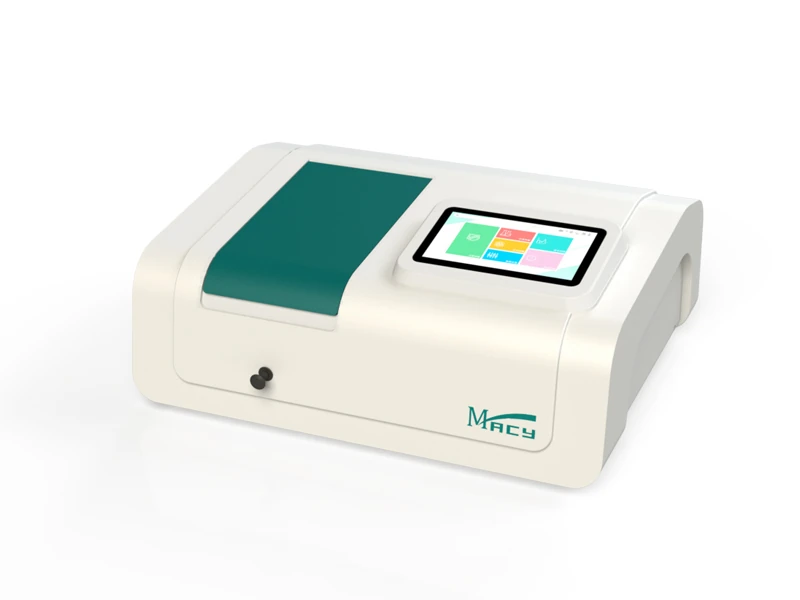

Macylab MV-2300 Visible Spectrophotometer

Key Features

• Standalone Touch Screen Interface: Operates via a 7-inch color touch screen with a built-in OS. Users can easily edit standard curves, view multiple sets of data, and configure testing parameters directly on the display.
• Automatic Wavelength & Filter Adjustment: Features an automatic wavelength setting and an automatic filter change mechanism to ensure precise optical alignment and reproducible testing without manual dial tuning.
• Quantitative Measurement Capabilities: Supports establishing standard curves using up to 10 standard samples. Users can also directly input known standard concentration values or K and B factors to establish quantitative measurement curves.
• Comprehensive Software Functions: The onboard software supports quantitative measurements, multi-wavelength testing, kinetic tests (monitoring changes in absorbance over time), and wavelength scanning within the visible spectrum.
• Data Storage & Export: Equipped with significant internal memory space to store multiple sets of data and standard curves. It supports external USB disk storage for experimental data transmission and includes a general parallel printer interface to print measurement data and curve parameters directly.
• Large Sample Compartment: Accommodates cuvettes with path lengths ranging from 5mm to 100mm, providing flexibility for testing varying sample concentrations.

Specifications

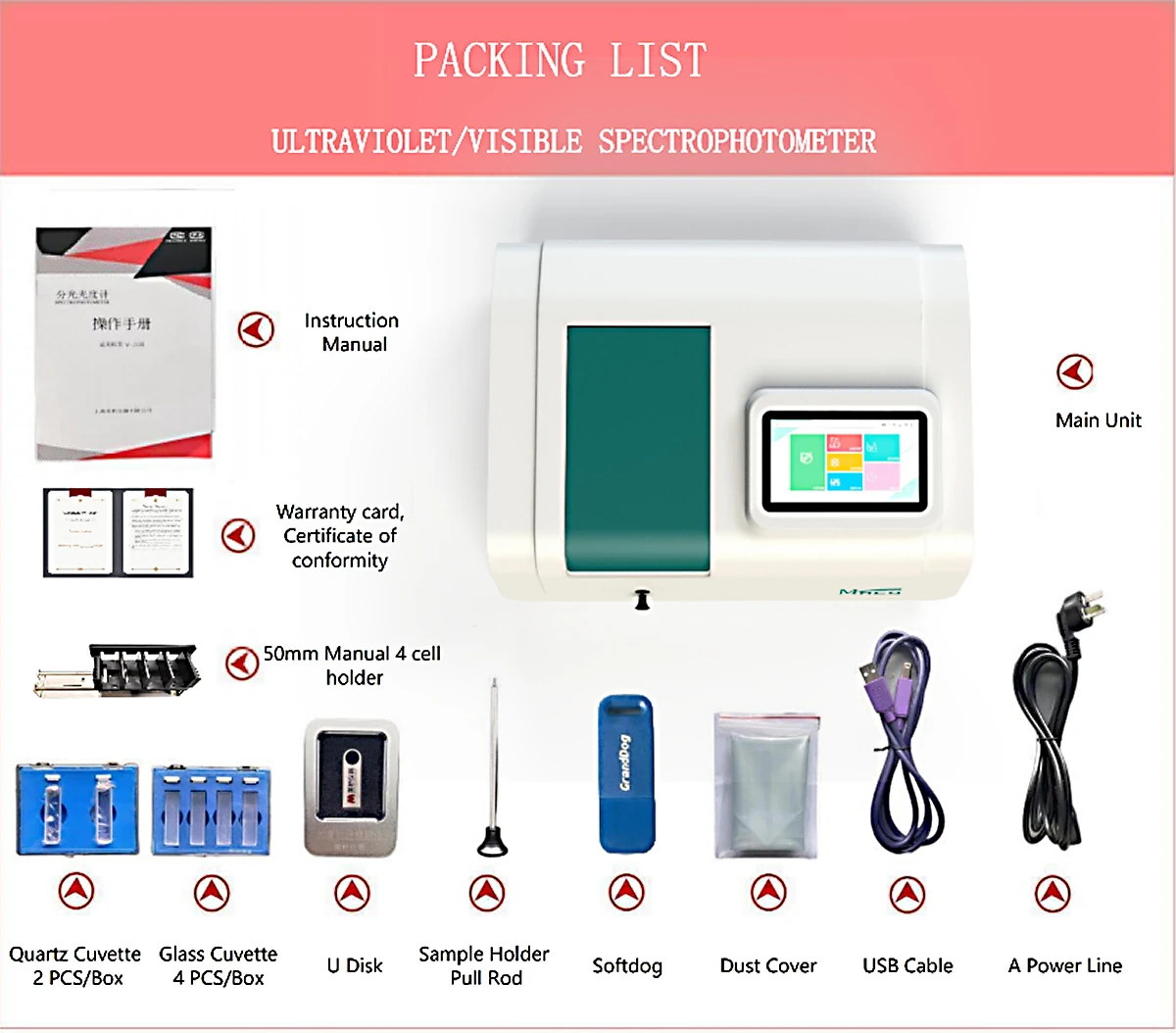

Standard Configuration

Applications

The MV-2300 is designed for photometric testing in the standard visible light spectrum:

• Water Quality & Environmental Testing: Colorimetric determination of parameters such as chemical oxygen demand (COD), phosphates, and nitrates in water samples.
• Food & Beverage Quality Control: Routine quantitative testing for food safety, dye concentrations, and color intensity.
• Agricultural Analysis: Determining nutrient levels and routine chemical compositions in soil and fertilizer extracts.
• General Laboratory & Education: Conducting kinetic tests and standard quantitative analysis in university chemistry and biology laboratories.

Who is it for?

• Academic and Teaching Institutions: University laboratories that require an intuitive, touch-screen operated instrument that is easy for students to learn and use.
• Industrial QC Departments: Quality control labs in agriculture, chemical, and food industries needing an efficient spectrophotometer that does not require dedicating a PC to the workstation.
• Water Treatment Facilities: Environmental monitoring stations processing routine visible-range colorimetric assays with a need for onboard data storage and direct USB export.

Why choose it?

• Space-Saving Standalone Operation: The built-in operating system and 7-inch touch screen eliminate the need for a connected PC, significantly saving laboratory bench space while maintaining advanced software functionalities.
• Improved Optical Accuracy: With an automatic wavelength setting, ±0.5nm accuracy, and stray light of ≤0.04% T, the instrument provides reliable and highly repeatable optical performance for standard visible light assays.
• Convenient Data Management: The combination of internal memory, external USB drive support, and a direct parallel printer interface makes tracing, storing, and exporting routine laboratory data highly efficient.

Software features

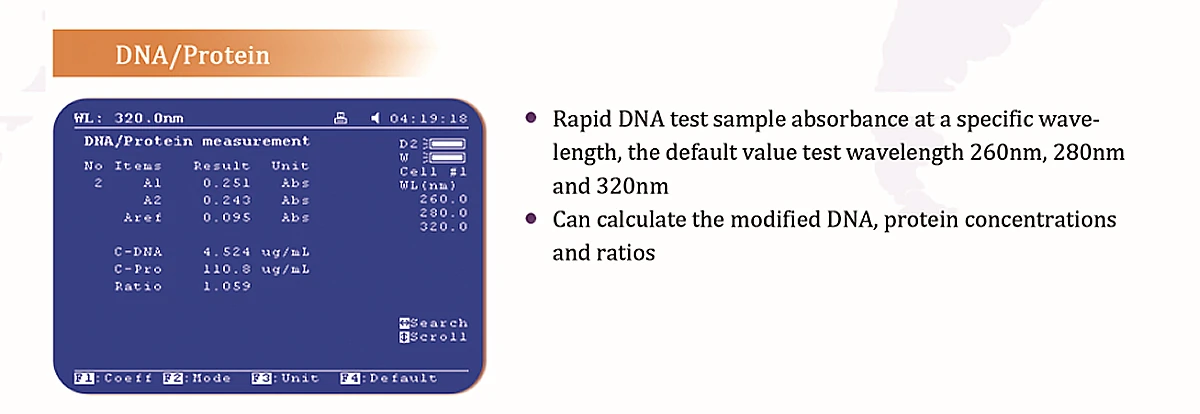

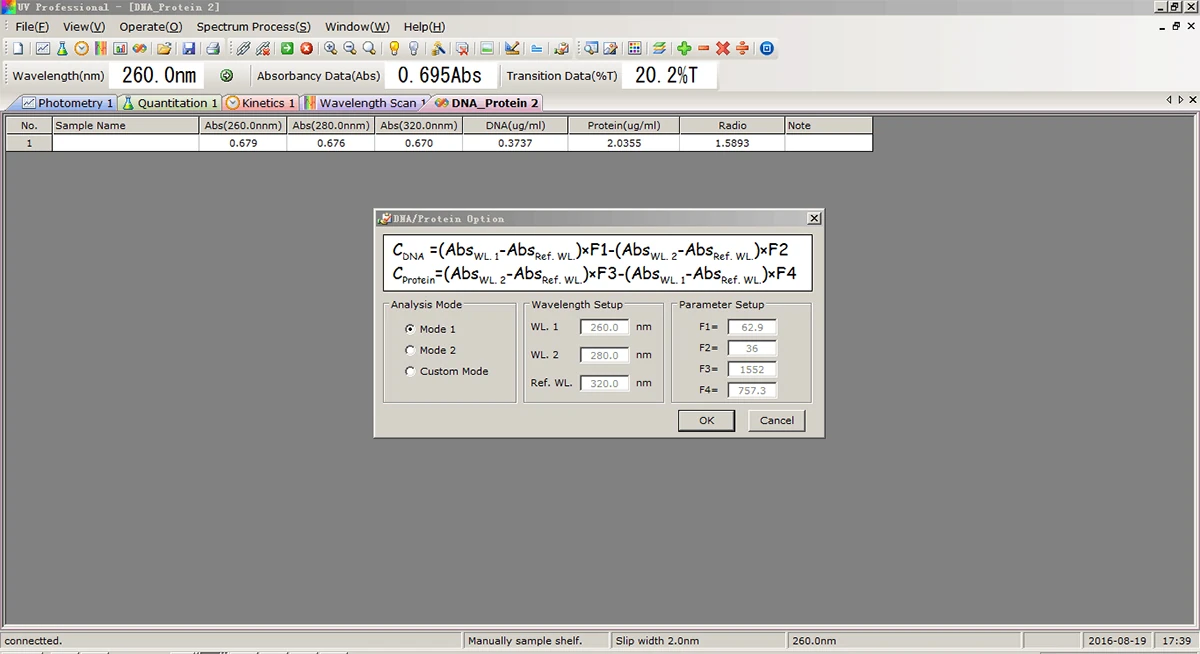

DNA Protein

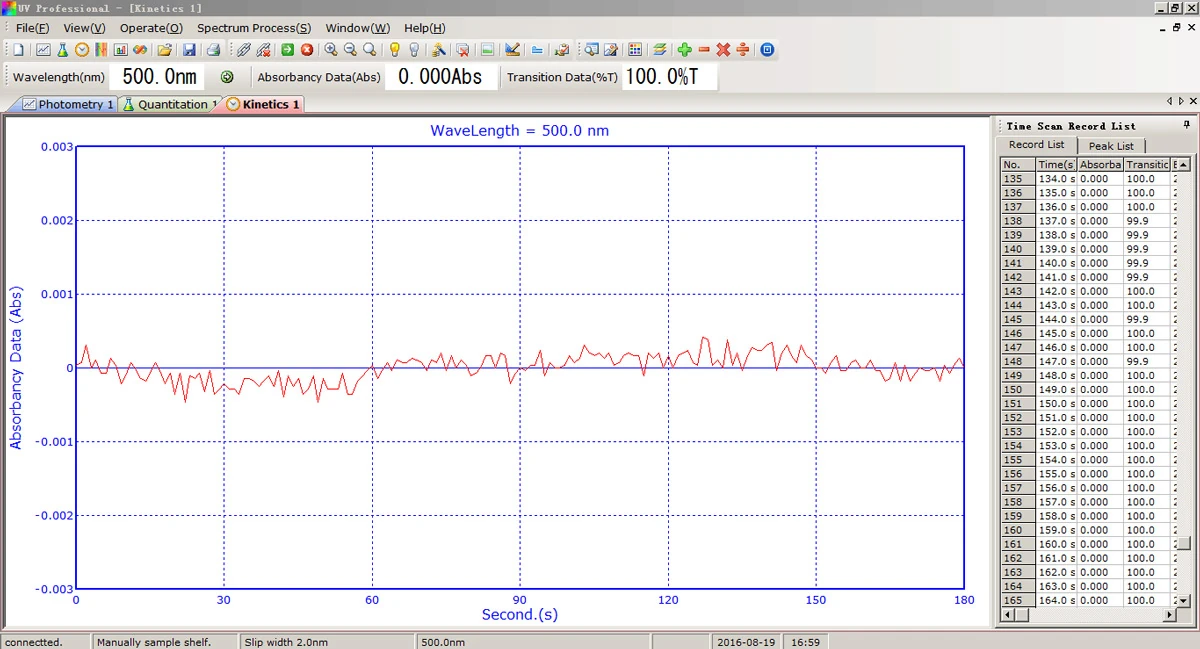

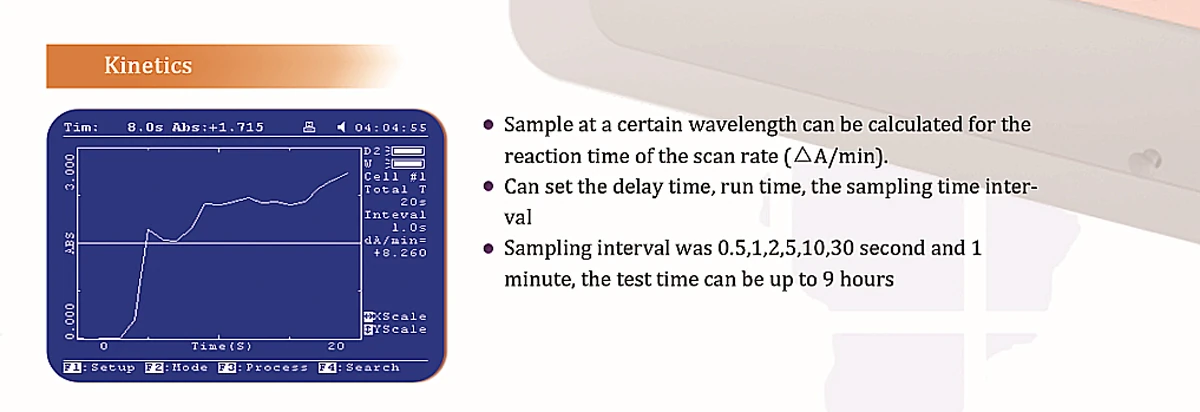

Kinetics

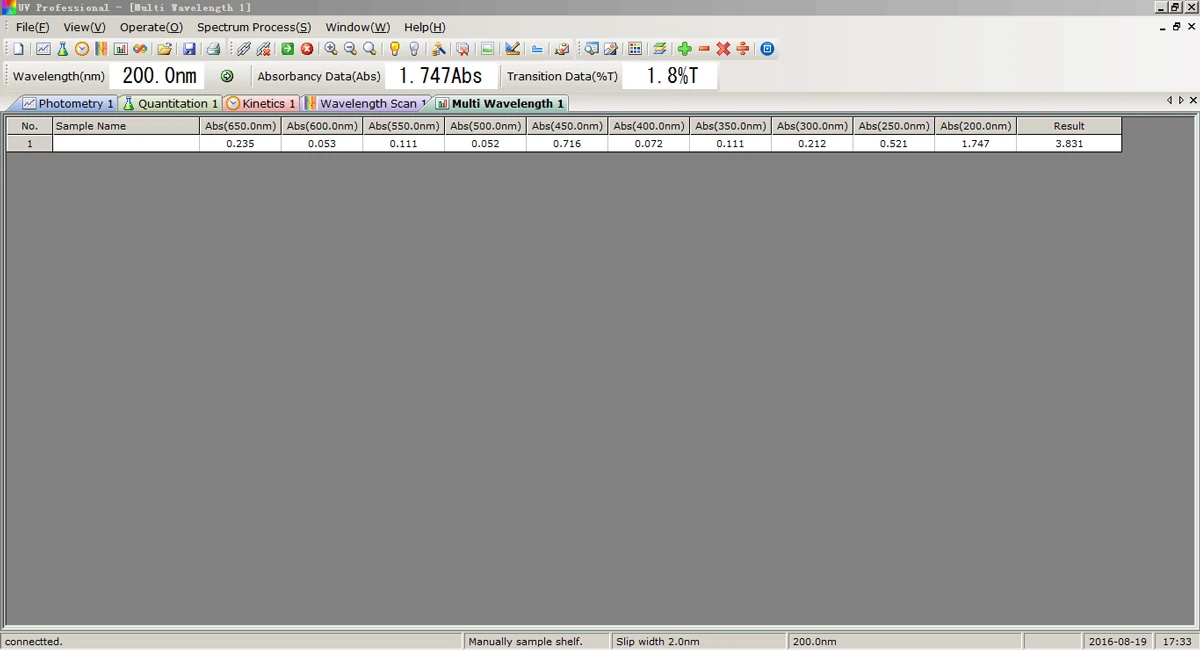

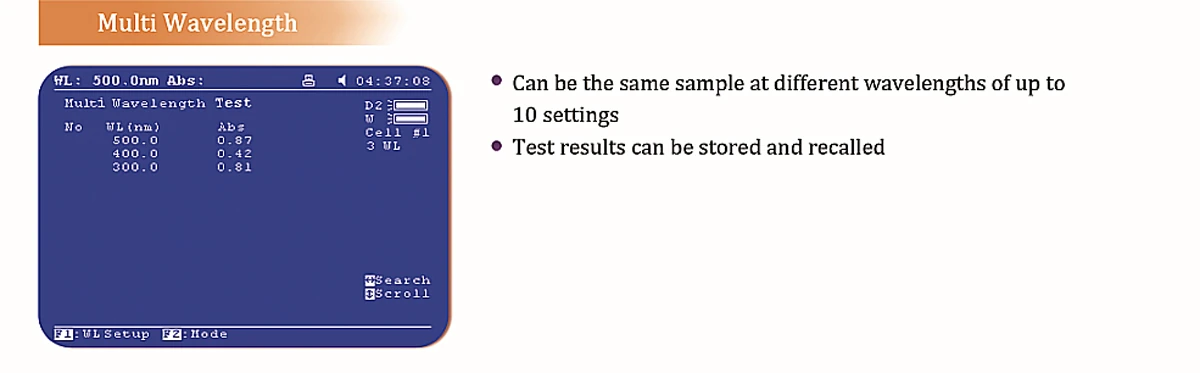

Multi Wavelength
