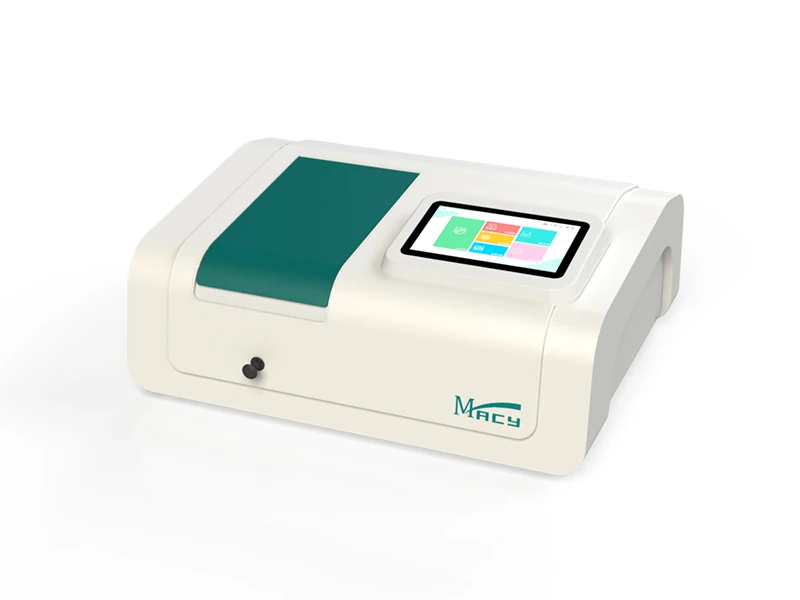

The Macylab M-2500 is a UV-Vis spectrophotometer operating across the 190nm to 1100nm wavelength range. Engineered with an automatic wavelength setting and an optional spectral bandwidth of 1.0nm or 2.0nm, it supports a wide variety of quantitative and qualitative analytical requirements in the ultraviolet and visible spectrums.
Utilizing an optimized LSI circuit design and a 6-inch high-brightness blue LCD, the instrument functions as a reliable standalone platform. By incorporating an imported deuterium and tungsten halogen lamp combination alongside a silicon photodiode detector, the M-2500 delivers stable optical measurements for routine applications in biological research, pharmaceuticals, and environmental protection.
Key Features
Optional Spectral Bandwidth: Offers 1.0nm and 2.0nm bandwidth options, allowing laboratories to align the optical resolution with specific testing requirements and sample types.
6-Inch LCD Interface: Features a 6-inch high-brightness blue LCD. Users can configure parameters, execute measurements, and view results directly on the device without requiring a connected computer.
Comprehensive Analytical Functions: The onboard system supports full-band or segmented wavelength scanning, kinetic tests (monitoring absorbance changes over time), multi-wavelength testing, and quantitative measurement. It also supports optional multi-order derivative, dual-wavelength, and DNA/protein measurements.
Optimized Optical System: The optical design, supported by the LSI circuit and imported light sources, provides a stable baseline (0.0005A/h @500nm) and low stray light (≤0.03% τ).
Data Retention and Output: The unit is designed to save measurement parameters and test data after powering down. It features a USB interface for data output to a printer and supports PC control for expanded measurement capabilities.
The M-2500 is utilized for quantitative and qualitative photometric testing across a variety of scientific fields:
Pharmaceutical Analysis: Conducting multi-wavelength determinations and standard quantitative testing for active pharmaceutical ingredients.
Life Sciences & Biology: Executing optional DNA and protein testing to analyze nucleic acid purity and protein concentrations.
Environmental Protection: Testing water quality parameters and environmental extracts that exhibit absorbance peaks in the UV and visible ranges.
General Laboratory Research: Executing full-band or segmented wavelength scans and kinetic tests to monitor concentration changes caused by absorbance shifts over time.
Who is it for?
Academic and Teaching Institutions: University chemistry and biology laboratories needing a reliable spectrophotometer for standard research and educational applications.
Quality Control Departments: QC labs that require stable optical performance, automated wavelength setting, and repeatable quantitative testing in a standalone unit.
Environmental Testing Facilities: Water treatment and monitoring stations that process routine samples and need efficient data retention and output capabilities.
Why choose it?
Adaptable Resolution: The switchable 1.0nm and 2.0nm bandwidth options allow users to conform to various analytical compliance standards.
Standalone Reliability: The integrated 6-inch LCD and onboard software eliminate the necessity of dedicating a separate PC to the workstation, while the power-down data retention prevents the loss of experimental setups.
Certified Qualifications: The instrument complies with major international product qualifications and safety standards, holding certifications including the European CE mark, North American ETL, FCC, RoHS, China CQC, and 3C.
Software features
DNA Protein
Kinetics
Multi Wavelength
Quantitive
WL Scan
Packaging, Installation & Operation
Packaging & Shipping

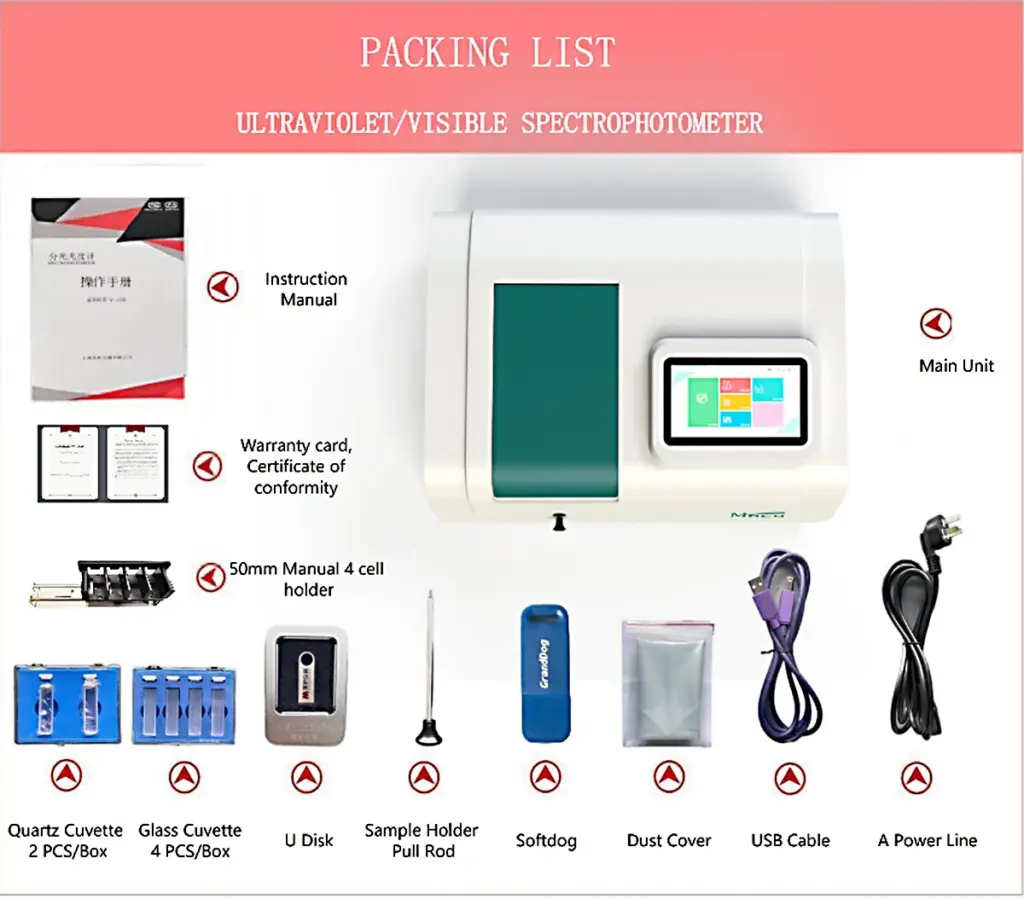

After unpacking the instrument, compare the contents with the packing list and check that all items are present and undamaged.
Installation & Setup
Place the spectrophotometer in a suitable location away from direct sunlight, dust, corrosive gases, and strong vibrations. For stable operation, keep it away from strong magnetic or electrical fields and electrical devices that may generate high-frequency fields.
Keep the area around and underneath the instrument clear to allow adequate airflow.
Use the appropriate power cord and connect the instrument to a grounded outlet.
Initial Operation
Turn on the spectrophotometer and allow it to warm up for the recommended time before taking measurements. Follow the instrument’s operating instructions to complete any required system initialization, calibration, or wavelength verification before measurement.
Exhibition
FAQ (Frequently Asked Questions)
The instrument features an optional spectral bandwidth configuration of 1.0nm or 2.0nm, allowing you to optimize optical resolution based on your sample.
No. It operates as a fully standalone unit using its 6-inch high-brightness blue LCD. However, it also supports PC control for users who require more flexible measurement setups and advanced data handling.
Yes, DNA and protein measurement functions are available as an optional testing method on this model to analyze nucleic acid purity and protein concentration.
Yes. The instrument operates across the 190nm to 1100nm wavelength range, utilizing an imported deuterium lamp for the UV spectrum and a tungsten halogen lamp for the visible spectrum.
No. The instrument is designed to save your measurement parameters and data upon power down, ensuring you do not lose your experimental setups or readings.
