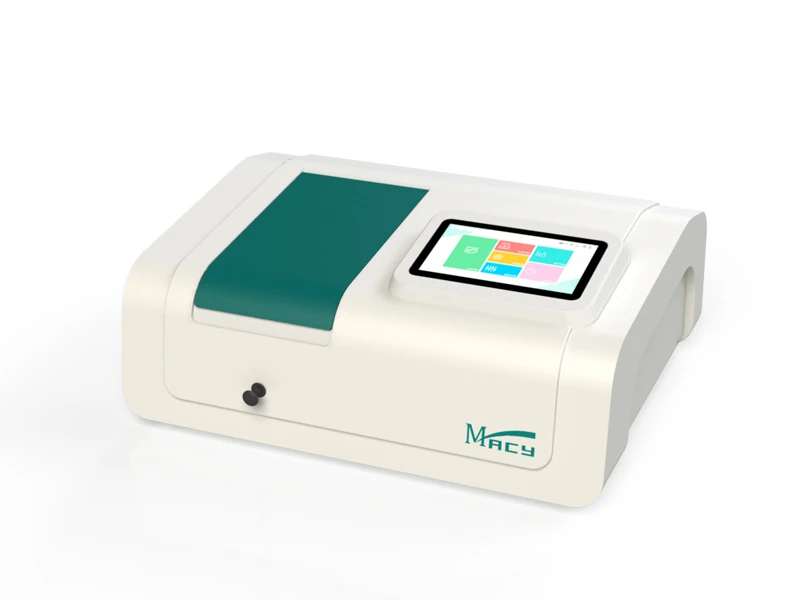

The Macylab M-2600 is a single-beam UV-Vis spectrophotometer operating across the 190nm to 1100nm wavelength range. Designed for quantitative and qualitative laboratory analysis, it features an automatic wavelength setting and offers a 2.0nm or 4.0nm optional spectral bandwidth.
Equipped with a 7-inch touch LCD screen and integrated software, the instrument functions as a comprehensive standalone workstation. By utilizing an imported deuterium lamp and a tungsten halogen lamp combined with a silicon photodiode detector, the M-2600 delivers stable optical measurements for routine applications in biological research, pharmaceuticals, and environmental testing.
Key Features
Optional Spectral Bandwidth: Offers 2.0nm and 4.0nm bandwidth options, allowing laboratories to align the instrument’s optical resolution with specific testing requirements and sample types.
7-Inch Touch LCD Screen: Provides a direct interface for operators to set up tests, establish standard curves, and view analytical graphs on the device without requiring a connected computer.
Integrated Analytical Software: The onboard system supports full-band or segmented wavelength scanning, kinetic tests (monitoring absorbance changes over time), multi-wavelength testing, and quantitative measurement.
DNA and Protein Analysis: Includes built-in test formulas specifically designed for direct nucleic acid purity testing and protein concentration analysis.
Optimized Optical System: The single-beam optical design, supported by an LSI circuit and imported light sources, provides a stable baseline (0.0005A/h @500nm) and low stray light (≤0.03% τ).
Data Retention and Output: The unit can save measurement parameters and test data after powering down. It also features a USB interface for printing and supports PC control for expanded measurement capabilities.
Specifications
Parameter
Specification
Optical Path Structure
Single beam spectrophotometer
Wavelength Range
190 ～ 1100 nm
Wavelength Setting
Automatic
Band Width
2.0 / 4.0 nm Optional
Wavelength Accuracy
±0.3 nm
Wavelength Repeatability
0.1 nm
Photometric Display Range
-4 ～ 4 A
Photometric Accuracy
±0.2% τ
Photometric Repeatability
0.15% τ
Stray Light
≤0.03% τ
Stability
0.0005 A/h @ 500nm
Photometric Mode
T, A, C, E
Display Mode
Touch LCD Screen (7 inches)
Detector
Imported Silicon Photodiode
Light Source
Imported Deuterium Lamp & Tungsten Halogen Lamp
Data Output
USB interface for printer
Power Requirement
AC 220V/50Hz or 110V/60Hz
Dimensions (W×D×H)
510 × 390 × 220 mm
Weight
16 Kg
Standard Configuration
Applications
The M-2600 is utilized for quantitative and qualitative photometric testing across a variety of scientific fields:
Life Sciences & Biology: Executing DNA and protein tests using built-in formulas to analyze nucleic acid purity and protein concentrations.
Pharmaceutical Analysis: Conducting multi-wavelength determinations and standard quantitative testing for active pharmaceutical ingredients.
Environmental Protection: Testing water quality parameters and environmental extracts that exhibit absorbance peaks in the UV and visible ranges.
Chemical Research: Executing full-band or segmented wavelength scans and kinetic tests to monitor concentration changes caused by absorbance shifts over time.
Who is it for?
Academic and Teaching Institutions: University chemistry and biology laboratories needing a standalone spectrophotometer for standard research and educational applications.
Quality Control Departments: QC labs that require reliable quantitative testing, stable optical performance, and automated wavelength setting in a single-beam unit.
Environmental Testing Facilities: Water treatment and monitoring stations that process routine samples and need efficient data retention and output capabilities.
Why choose it?
Standalone Operation: The integrated 7-inch touch screen and onboard software eliminate the necessity of dedicating a separate PC to the workstation, conserving laboratory bench space.
Reliable Optical Performance: The combination of an optimized LSI circuit design and imported light source/receiver systems ensures high reliability and operational stability for daily laboratory use.
Certified Qualifications: The instrument complies with major international product qualifications and safety standards, holding certifications including the European CE mark, North American ETL, FCC, RoHS, China CQC, and 3C.
Software features
DNA Protein
Kinetics
Multi Wavelength
Quantitive
WL Scan
Packaging, Installation & Operation
Packaging & Shipping
After unpacking the instrument, compare the contents with the packing list and check that all items are present and undamaged.
Installation & Setup
Place the spectrophotometer in a suitable location away from direct sunlight, dust, corrosive gases, and strong vibrations. For stable operation, keep it away from strong magnetic or electrical fields and electrical devices that may generate high-frequency fields.
Keep the area around and underneath the instrument clear to allow adequate airflow.
Use the appropriate power cord and connect the instrument to a grounded outlet.
Initial Operation
Turn on the spectrophotometer and allow it to warm up for the recommended time before taking measurements. Follow the instrument’s operating instructions to complete any required system initialization, calibration, or wavelength verification before measurement.
Exhibition
FAQ (Frequently Asked Questions)
The M-2600 utilizes a single-beam spectrophotometer structure, designed for reliable operation and stability in standard laboratory testing.
The instrument features an optional spectral bandwidth configuration of 2.0nm or 4.0nm.
No. It operates as a fully standalone unit using its 7-inch touch LCD screen. However, it also supports PC control for users who require more flexible measurement setups and advanced data handling.
Yes. The instrument operates across the 190nm to 1100nm wavelength range, utilizing a deuterium lamp for the UV spectrum and a tungsten halogen lamp for the visible spectrum.
No. The instrument is designed to save your measurement parameters and data upon power down, ensuring you do not lose your experimental setups or readings.
