The Macylab M-2600D is a double-beam UV-Vis spectrophotometer engineered for precise quantitative and qualitative analysis across the 190nm to 1100nm wavelength range. It features an adjustable spectral bandwidth of 2.0nm or 4.0nm and an automatic wavelength setting mechanism to accommodate a variety of analytical requirements.
Built with an optimized LSI circuit design and a 7-inch touch LCD screen, the instrument operates as a comprehensive standalone workstation. Utilizing a combination of an imported deuterium lamp and a tungsten halogen lamp with a silicon photodiode detector, the M-2600D provides laboratories with a stable optical platform suitable for biological research, pharmaceutical analysis, and environmental protection.
Key Features
Double Beam Optical System: Splits the optical path to simultaneously measure the sample and reference, actively compensating for light source fluctuations. This configuration provides a stable baseline (0.0005A/h @500nm) and maintains low stray light (≤0.03% τ).
Adjustable Spectral Bandwidth: Offers 2.0nm and 4.0nm selectable bandwidth options, allowing operators to adjust the optical resolution according to specific testing standards and sample types.
7-Inch Touch LCD Screen: Provides a direct interface for operators to set up tests, establish standard quantitative curves, and view analytical graphs on the instrument without requiring an external computer.
Comprehensive Software Capabilities: The onboard system supports wavelength scanning (full band or segmented), kinetic tests, quantitative measurements, and multi-wavelength testing. It also includes specific formulas for DNA and protein measurements.
Data Retention & PC Control: Designed to save measurement parameters and test data even if the unit is powered down. It includes a USB interface for printing and supports optional PC control for more flexible data management.
Specifications
Parameter
Specification
Optical Path Structure
Double beam spectrophotometer
Wavelength Range
190 ～ 1100 nm
Wavelength Setting
Automatic
Band Width
2.0 / 4.0 nm Optional
Wavelength Accuracy
±0.3 nm
Wavelength Repeatability
0.1 nm
Photometric Display Range
-4 ～ 4 A
Photometric Accuracy
±0.2% τ
Photometric Repeatability
0.15% τ
Stray Light
≤0.03% τ
Stability
0.0005 A/h @ 500nm
Photometric Mode
T, A, C, E
Display Mode
Touch LCD Screen (7 inches)
Detector
Imported Silicon Photodiode
Light Source
Imported Deuterium Lamp & Tungsten Halogen Lamp
Data Output
USB interface for printer
Power Requirement
AC 220V/50Hz or 110V/60Hz
Dimensions (W×D×H)
510 × 390 × 220 mm
Weight
16 Kg

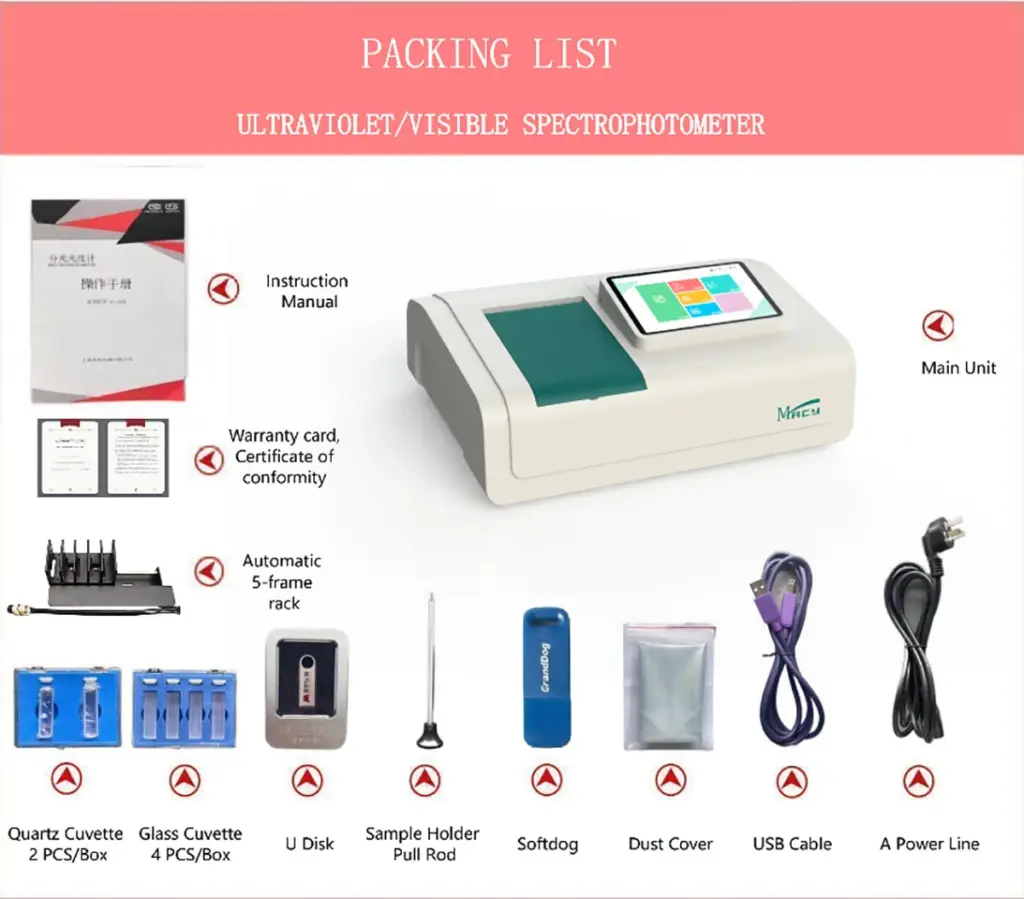

Standard Configuration
Applications
The M-2600D is utilized for quantitative and qualitative photometric testing across a variety of scientific fields:
Life Sciences & Biology: Executing DNA and protein tests using built-in formulas to analyze nucleic acid purity and protein concentrations.
Pharmaceutical Analysis: Conducting standard quantitative testing, multi-wavelength determinations, and optional multi-order derivative tests for active pharmaceutical ingredients.
Environmental Protection: Testing water quality parameters and environmental extracts that exhibit absorbance peaks in the UV and visible ranges.
Chemical Research: Executing full-band or segmented wavelength scans and kinetic tests to monitor concentration changes caused by absorbance shifts over time.
Who is it for?
Research Universities and Institutes: Laboratories needing a robust double-beam spectrophotometer with adjustable bandwidths for varied research and teaching applications.
Quality Control Departments: QC labs that require reliable quantitative testing, stable optical performance, and automated wavelength setting in a standalone unit.
Environmental Testing Facilities: Water treatment and monitoring stations that process routine samples and need efficient data output and retention capabilities.
Why choose it?
Stable Double-Beam Design: The double-beam optical structure, combined with an optimized LSI system and imported light sources, ensures highly reliable optical performance and baseline stability for long-term analytical operations.
Adaptable Resolution: The switchable 2.0nm and 4.0nm bandwidth options provide the flexibility needed to conform to various analytical compliance standards without purchasing multiple fixed-bandwidth devices.
Certified Qualifications: The instrument complies with major international product qualifications and safety standards, holding certifications including the European CE mark, North American ETL, FCC, RoHS, China CQC, and 3C.
Software features
DNA Protein
Kinetics
Multi Wavelength
Quantitive
WL Scan
Packaging, Installation & Operation
Packaging & Shipping
After unpacking the instrument, compare the contents with the packing list and check that all items are present and undamaged.
Installation & Setup
Place the spectrophotometer in a suitable location away from direct sunlight, dust, corrosive gases, and strong vibrations. For stable operation, keep it away from strong magnetic or electrical fields and electrical devices that may generate high-frequency fields.
Keep the area around and underneath the instrument clear to allow adequate airflow.
Use the appropriate power cord and connect the instrument to a grounded outlet.
Initial Operation
Turn on the spectrophotometer and allow it to warm up for the recommended time before taking measurements. Follow the instrument’s operating instructions to complete any required system initialization, calibration, or wavelength verification before measurement.
Exhibition
FAQ (Frequently Asked Questions)
The M-2600D utilizes a double-beam spectrophotometer structure, designed to split the light path between the sample and reference to improve baseline stability and photometric accuracy.
Yes. The M-2600D features an adjustable spectral bandwidth with two specific options: 2.0nm and 4.0nm, allowing you to optimize optical resolution based on your sample.
No. It operates as a fully standalone unit using its 7-inch touch LCD screen. However, it also supports PC control for users who require more flexible measurement setups and advanced data handling.
Yes. The instrument operates across the 190nm to 1100nm wavelength range, utilizing a deuterium lamp for the UV spectrum and a tungsten halogen lamp for the visible spectrum.
No. The instrument is designed to save your measurement parameters and data upon power down, ensuring you do not lose your experimental setups or reading history.
