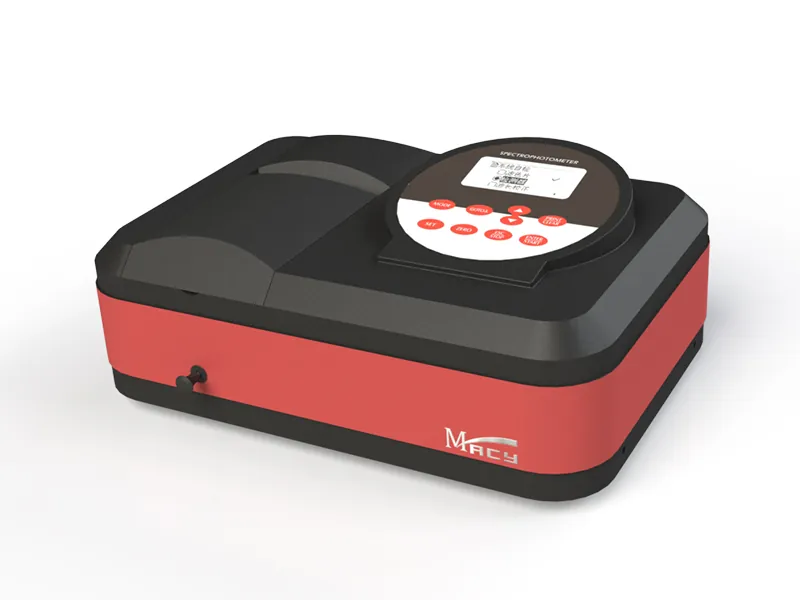

The Macylab UV-1200 is an automatic ultraviolet-visible (UV-Vis) spectrophotometer operating in the 190nm to 1100nm wavelength range with a 2nm spectral bandwidth. Controlled by a single-chip microcomputer, it features a 128×64 dots LCD screen capable of displaying multiple sets of data and standard curves directly on the interface.
Equipped with an automatic wavelength adjustment system and automatic filter changing, the UV-1200 supports a comprehensive range of analytical applications, from routine quantitative testing to specific DNA/protein analysis. It is designed to provide academic institutions and industrial laboratories with a reliable, standalone measurement platform.
Key Features
Automated Optical Adjustments: Features automatic wavelength adjustment, automatic filter changing, and an auto-zero (100% adjustment) function to streamline testing procedures and reduce manual operational errors.
Digital Data Display & Storage: Equipped with a 128×64 dots LCD screen. The large internal memory space stores multiple sets of data and standard curves, and it features a power-off save function to retain curve parameters.
Comprehensive Testing Capabilities: The built-in software supports full-band or segmented wavelength scanning (190-1100nm), kinetic tests for timely detection of absorbance changes, multi-wavelength testing, and specific DNA/protein purity analysis.
Quantitative Measurement Modes: Establish standard curves by testing up to ten standard samples. Users can also establish curves for quantitative measurement by directly inputting K and B factors or standard concentration values.
Data Export & PC Control: Includes a general parallel printer interface to print measurement data, curve parameters, and standard sample points. A built-in USB interface allows for optional PC control to achieve more flexible data processing.
Specifications
Parameter
Specification
Wavelength Range
190～1100nm
Band Width
2nm
Wavelength Accuracy
±1.0nm
Wavelength Repeatability
0.2nm
Photometric Accuracy
±0.5% τ
Photometric Repeatability
0.2% τ
Stray Light
≤0.05% τ
Stability
0.001A/h@500nm
Photometric Mode
T, A, C, E
Wavelength Setting
Automatic
Photometric Display Range
-0.3～3A
Display Mode
LCD Screen (128*64 Dots)
Detector
Imported Silicon Photodiode
Light Source
Imported Tungsten Halogen Lamp & Deuterium Lamp
Sample Pool
Accommodates 5mm ~ 100mm cuvettes
Power Requirement
AC 220V/50Hz or AC 110V/60Hz
Power Consumption
120W
Dimensions (W×D×H)
470 × 330 × 200 mm
Weight
10 Kg

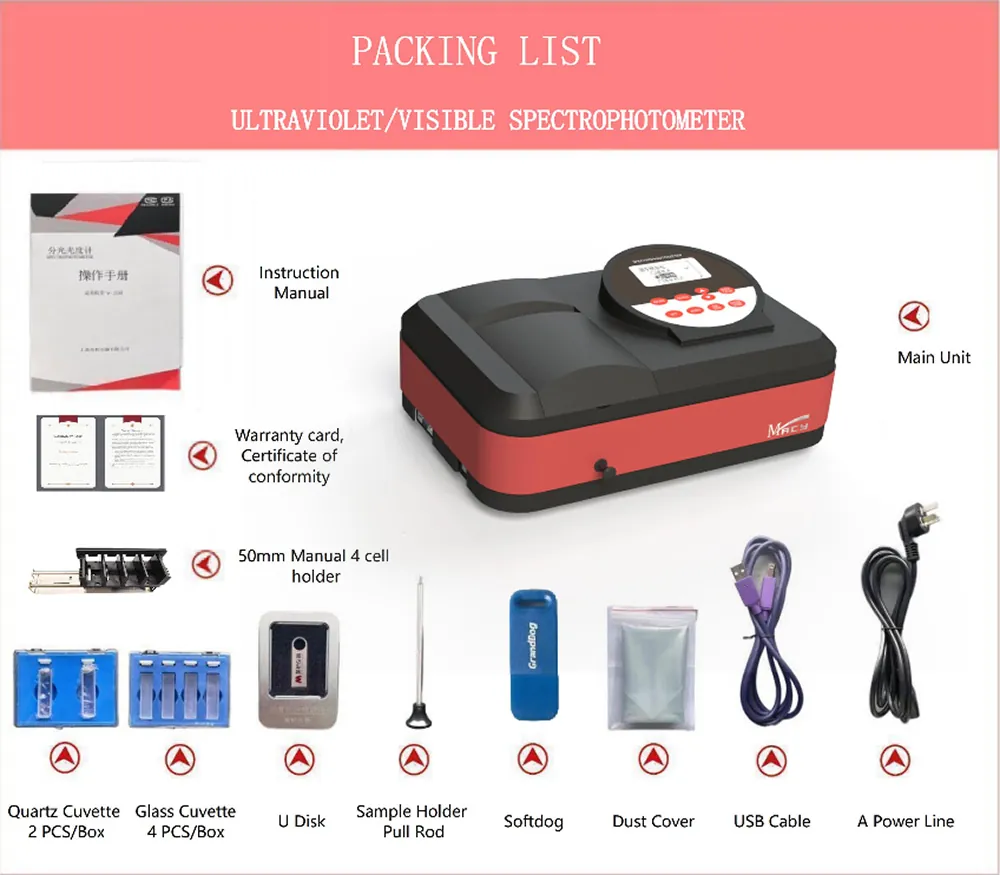

Standard Configuration
Applications
The UV-1200 supports quantitative and qualitative analyses across various scientific disciplines:
Biological & Clinical Research: Analyzing nucleic acid purity and performing DNA/protein concentration tests using dedicated software formulas.
Environmental Monitoring: Routine testing of water quality, chemical pollutants, and chemical oxygen demand (COD).
Quality Control & Materials Science: Testing chemical solutions, raw materials, and metallurgical extracts using quantitative and multi-wavelength measurements.
General Chemistry & Academia: Providing kinetics and full-band wavelength scanning for university chemistry and biology teaching laboratories.
Who is it for?
Academic Institutions: University and college laboratories needing a reliable, automated UV-Vis spectrophotometer for daily teaching and student research projects.
Industrial QC Laboratories: Chemical, pharmaceutical, and environmental testing labs requiring a 2nm bandwidth for standard compliance testing and routine quality control.
Clinical & Biological Labs: Testing facilities that require routine nucleic acid and protein purity assessments without relying on a dedicated PC.
Why choose it?
High-Resolution Bandwidth: The 2nm spectral bandwidth provides improved optical resolution compared to standard 4nm entry models, supporting stricter analytical testing requirements.
Standalone Efficiency: The built-in 128×64 dots LCD and powerful internal software allow operators to perform complex functions—such as wavelength scanning, kinetics, and DNA testing—directly on the instrument.
Certified Qualifications: The instrument complies with major international product qualifications and safety standards, holding certifications including the European CE mark, North American ETL, FCC, RoHS, China CQC, and 3C.
Software features
DNA Protein
Kinetics
Multi Wavelength
Quantitive
WL Scan
Packaging, Installation & Operation
Packaging & Shipping
After unpacking the instrument, compare the contents with the packing list and check that all items are present and undamaged.
Installation & Setup
Place the spectrophotometer in a suitable location away from direct sunlight, dust, corrosive gases, and strong vibrations. For stable operation, keep it away from strong magnetic or electrical fields and electrical devices that may generate high-frequency fields.
Keep the area around and underneath the instrument clear to allow adequate airflow.
Use the appropriate power cord and connect the instrument to a grounded outlet.
Initial Operation
Turn on the spectrophotometer and allow it to warm up for the recommended time before taking measurements. Follow the instrument’s operating instructions to complete any required system initialization, calibration, or wavelength verification before measurement.
Exhibition
FAQ (Frequently Asked Questions)
Yes. The built-in software supports full-band spectrum scanning from 190nm to 1100nm, as well as segmented scanning to detect absorbance changes over specific wavelength ranges.
The UV-1200 features a fixed 2nm spectral bandwidth. This offers higher resolution for more demanding quantitative analysis compared to models with a standard 4nm bandwidth.
Yes. The UV-1200 includes specific test formulas designed for analyzing nucleic acid purity and determining protein concentration.
The instrument features a large sample pool designed to accommodate standard cuvettes ranging from 5mm up to 100mm in path length.
No. The UV-1200 can operate completely as a standalone unit utilizing its LCD screen and built-in software. However, it is equipped with a USB interface for optional PC control if advanced software processing is required.
