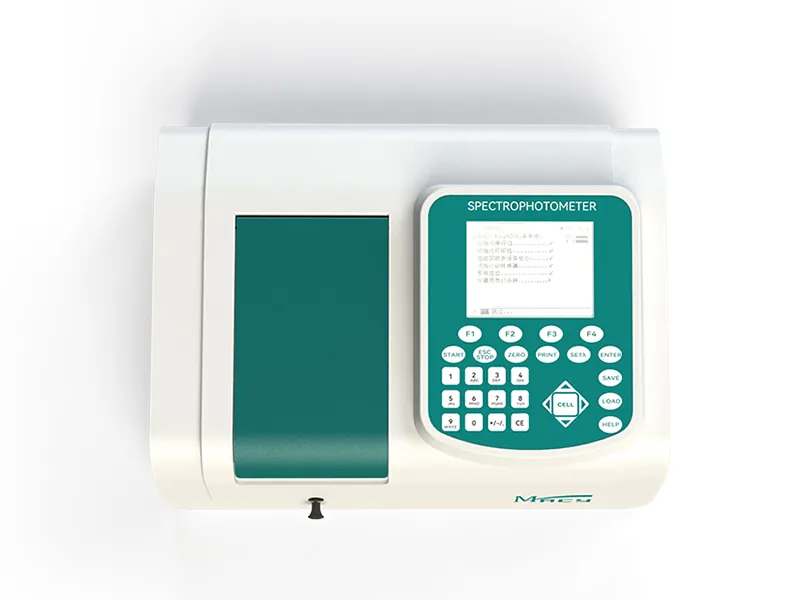

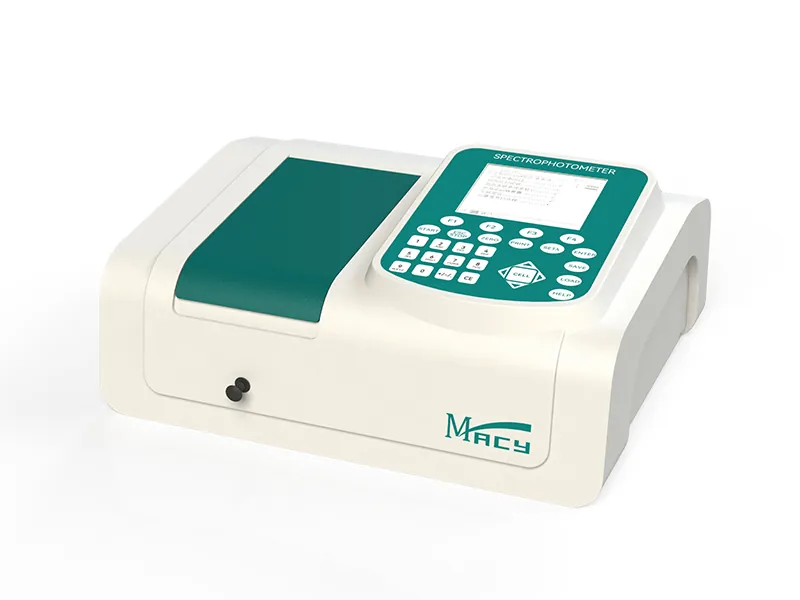

The Macylab UV-1600D is a double-beam ultraviolet-visible (UV-Vis) spectrophotometer operating in the 190nm to 1100nm wavelength range. Engineered with a large-scale integration (LSI) design and an optimized double-beam optical path, it supports high-stability photometric measurements.
Equipped with an imported deuterium and tungsten halogen lamp system, the instrument features an automatic wavelength setting and a 6-inch high-brightness blue LCD. It allows operators to perform multiple analytical methods, including wavelength scanning, kinetics, and DNA/protein testing, serving as a reliable analytical instrument for biological research, pharmaceutical analysis, and clinical examination.
Key Features
Double-Beam Optical System: Utilizes a double-beam optical path structure to improve measurement stability and minimize background noise, achieving a stray light level of ≤0.03% τ.
Comprehensive Measurement Modes: The integrated software supports full-band wavelength scanning (190-1100nm), kinetic time scanning, quantitative standard curve measurements, and multi-wavelength testing.
DNA & Protein Analysis: Includes dedicated measurement formulas for analyzing the purity of nucleic acids and calculating protein concentrations.
Automatic Wavelength Configuration: Features an automatic wavelength setting function, reducing manual adjustment errors and ensuring a wavelength accuracy of ±0.3nm.
Data Management & Connectivity: Test results and parameters are displayed directly on the 6-inch LCD screen. The system supports power-down data saving and can output measurement data to a printer via a USB interface. It also supports more flexible measurements through optional PC control.
Versatile Sample Accommodation: The system is compatible with various optional accessories based on user requirements, including manual 4-position or 8-position stands, automatic 8-position frames, test tube racks, and colorimetric racks accommodating 1cm, 5cm, and 10cm cuvettes.
Specifications
Parameter
Specification
Optical Path Structure
Double beam
Wavelength Range
190～1100nm
Band Width
4.0nm
Wavelength Accuracy
±0.3nm
Wavelength Repeatability
0.1nm
Photometric Display Range
-4～4A
Photometric Accuracy
±0.3% τ
Photometric Repeatability
0.15% τ
Stray Light
≤0.03% τ
Stability
0.0005A/h@500nm
Photometric Mode
T, A, C, E
Wavelength Setting
Automatic
Display Mode
6 inches high brightness blue LCD
Detector
Imported Silicon Photodiode
Light Source
Imported Deuterium Lamp & Tungsten Halogen Lamp
Output Interface
USB (printer compatible)
Power Requirement
AC 220V/50Hz or AC 110V/60Hz
Power / Dimensions
120W | 510 × 390 × 200 mm
Weight
15 Kg

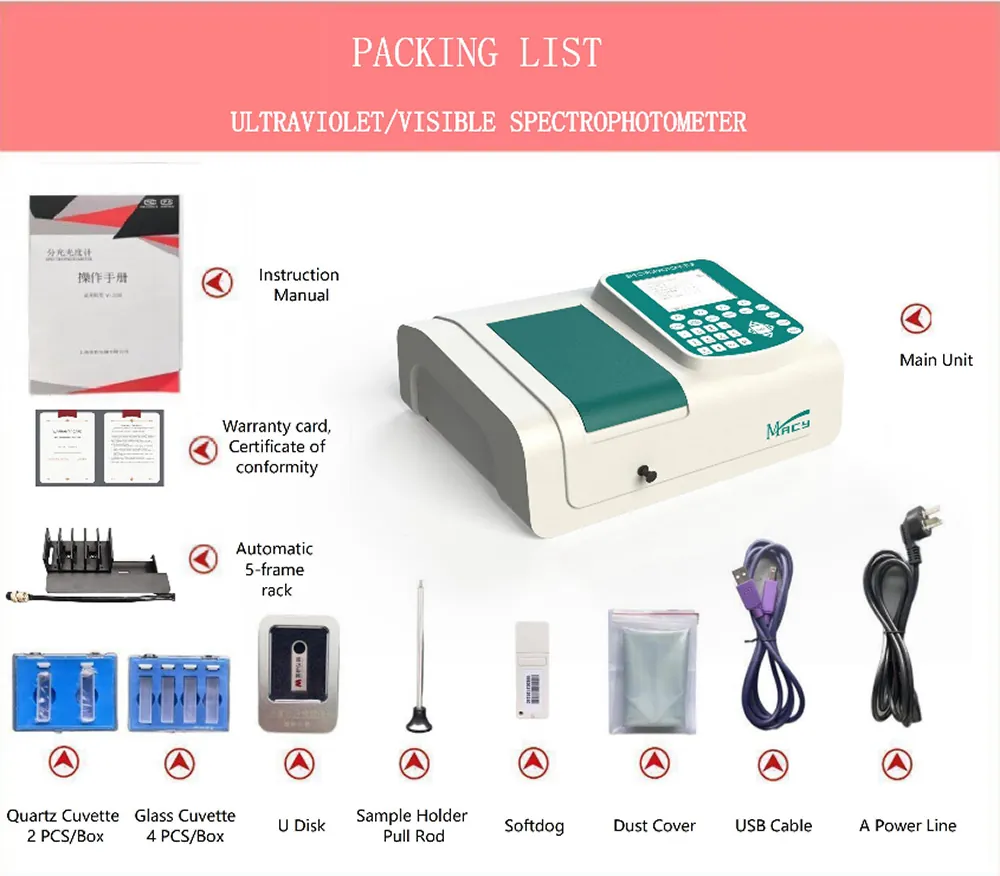

Standard Configuration
Applications
The UV-1600D supports quantitative and qualitative analyses across various scientific fields:
Biological & Bio-industry Research: Analyzing nucleic acid purity and protein concentrations using specialized UV measurement formulas.
Pharmaceutical Analysis: Routine testing and quality control of pharmaceutical raw materials and finished products.
Clinical Examination & Epidemic Prevention: Photometric assays and biochemical testing for clinical and health departments.
Environmental & Food Hygiene: Determination of chemical contaminants, additives, and water quality parameters.
Who is it for?
Research Institutes & Universities: Academic and teaching laboratories requiring a stable double-beam spectrophotometer for diverse measurement techniques, from kinetics to multi-wavelength assays.
Pharmaceutical & Clinical Labs: Facilities that need reliable wavelength accuracy (±0.3nm) and automatic operation to meet strict testing requirements.
Industrial QC Departments: Environmental and food testing centers that require consistent performance and versatile sample holders (accommodating up to 10cm cuvettes) for low-concentration sample testing.
Why choose it?
Measurement Reliability: The double-beam architecture paired with imported light sources and a silicon photodiode detector creates a high-stability platform (0.0005A/h@500nm), supporting reliable performance during routine analysis.
Standalone Convenience: The integrated 6-inch blue LCD and onboard software eliminate the absolute necessity for a dedicated computer to execute wavelength scans or kinetics, though PC control remains an option.
Certified Qualifications: The instrument complies with major international product qualifications and safety standards, holding certifications including the European CE mark, North American ETL, FCC, RoHS, China CQC, and 3C.
Software features
DNA Protein
Kinetics
Multi Wavelength
Quantitive
WL Scan
Packaging, Installation & Operation
Packaging & Shipping
After unpacking the instrument, compare the contents with the packing list and check that all items are present and undamaged.
Installation & Setup
Place the spectrophotometer in a suitable location away from direct sunlight, dust, corrosive gases, and strong vibrations. For stable operation, keep it away from strong magnetic or electrical fields and electrical devices that may generate high-frequency fields.
Keep the area around and underneath the instrument clear to allow adequate airflow.
Use the appropriate power cord and connect the instrument to a grounded outlet.
Initial Operation
Turn on the spectrophotometer and allow it to warm up for the recommended time before taking measurements. Follow the instrument’s operating instructions to complete any required system initialization, calibration, or wavelength verification before measurement.
Exhibition
FAQ (Frequently Asked Questions)
The UV-1600D utilizes a double-beam optical path structure, which provides a stable baseline and reduces stray light compared to single-beam instruments.
Yes. The built-in software supports both full-band spectrum scanning from 190nm to 1100nm and segmented scanning for specific wavelength ranges.
Yes. The UV-1600D software includes a dedicated DNA/protein test function designed to calculate nucleic acid purity and protein concentration.
Yes. The UV-1600D features a power-down memory function to save measurement parameters and data. Measurement data can also be output through a printer connected via the USB interface.
The system supports multiple optional sample racks, including manual or automatic 4- and 8-position stands. It can accommodate 1cm, 5cm, and 10cm colorimetric racks to handle varying sample volumes and concentration requirements.
